🧩 Full name of the painting:

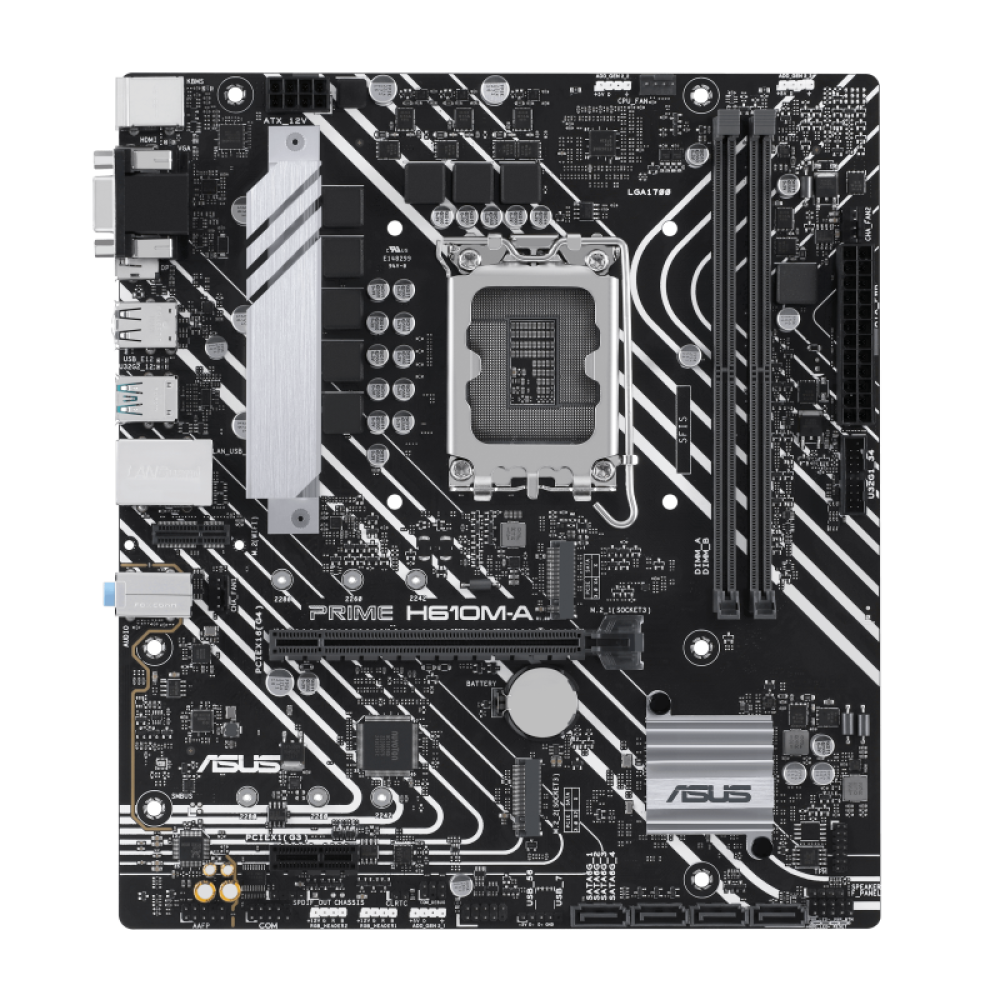

ASUS PRIME H610M-A WIFI D4
(Note: There is a version that supports DDR5, but the majority is DDR4, so make sure of the exact model name if you mean DDR5)
✅ Basic specifications
- Chipset: Intel H610
- Supported processor:
- Supports 12th, 13th and 14th generation Intel processors
- LGA 1700 sockets
- Memory (RAM):
- Supports DDR5 (make sure the version is DDR5 and not DDR4)
- Number of slots: 2 slots
- Supported frequencies: up to 4800MHz (and above with overclocking)
- Maximum capacity: up to 64GB
- Network:
- Built-in Wi-Fi (Wi-Fi 5 or Wi-Fi 6 depending on model)
- Built-in Bluetooth
- 1Gbps LAN port
- Sound:
- Realtek High Definition Audio Chip (7.1 Channel)
🎮 Expansion and outlets
- PCIe x16 slot: Supports modern graphics cards (PCIe 4.0)
- Additional PCIe x1 slot
- M.2 NVMe:
- 1 x M.2 SSD slot with PCIe 3.0 speed
- 1 x Integrated M.2 Wi-Fi slot
- SATA: 4 SATA III ports for connecting HDDs or SSDs
🔌 Back Panel I/O
- 1 x HDMI port
- 1 x DisplayPort
- 1 x D-Sub (VGA) port
- 2 × USB 3.2 Gen 1
- 4 × USB 2.0
- 1 x LAN port
- 3 x Audio Ports (Line in / Line out / Mic in)
- External Wi-Fi antennas (included)
⚙️ Additional features
- Fan Xpert Technology: Manage fan speed via ASUS software
- Easy-to-use UEFI BIOS
- PCIe electrical and metal protection
- TPM and Windows 11 support
- Good cooling for the chipset and important ports
📦 Inside the box
- motherboard
- Wi-Fi antennas
- SATA cable
- M.2 screws
- Instruction manual
- Driver CD (or QR code to download)
📝 Important notes
- Make sure the motherboard you have actually supports DDR5 , as most versions of the H610M-A WIFI only support DDR4 , and there may be a version specifically for DDR5.
- It does not support overclocking (because it is an H610 chipset, not a Z690 or B760)
- Very suitable for desktop, simple and practical design, daily use and light to medium gaming.
🎯 Who is it suitable for?
- Suitable for building an economical and modern device that supports the 12th/13th/14th generation of Intel
- Supports the latest storage technology (M.2 NVMe), with DDR5 support for speed
- An excellent choice for those who want Wi-Fi and Bluetooth wireless connectivity directly from the board without external components.
Would you like me to help you build a motherboard compatible with this motherboard? Or are you looking for a comparison between it and another motherboard?
